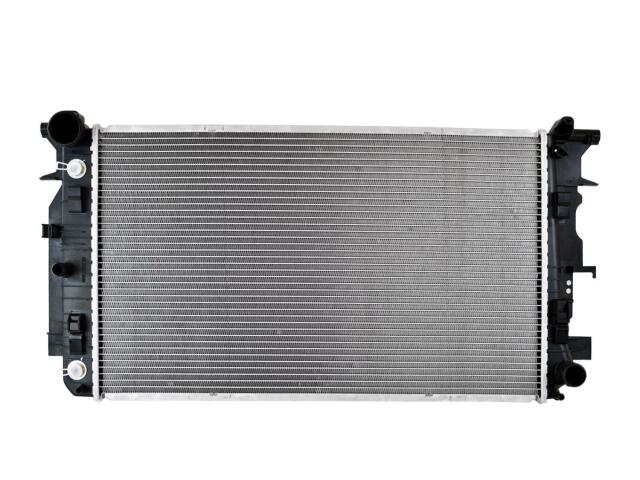

Radiator
OSC : 13254

Core Height (IN): 26 11/16
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 1
Core Thickness (MM): 26
Core Width (IN): 15 11/16
Down Flow Or Cross Flow Type: Crossflow
Engine Oil Cooler Included: No
Inlet Diameter (IN): 1 3/8
Inlet Header Length (IN): 16 1/2
Inlet Header Width (IN): 2 1/8
Outlet Diameter (IN): 1 7/8
Outlet Header Length (IN): 16 1/2
Outlet Header Width (IN): 2 1/8
Tank Material: Plastic
Transmission Oil Cooler Diameter (IN): 1
Transmission Oil Cooler Distance between Fittings (IN): 12 1/16
Transmission Oil Cooler Included: Yes

适用车型

DODGE (2)

FREIGHTLINER (2)

SPRINTER 2500 (2)

SPRINTER 3500 (2)

OE号码

品牌	号码
OE	68013630A*

品牌	号码
OE	68013630A*

品牌	号码
OE	RAD1325*
