第三方数据OSC : 13103

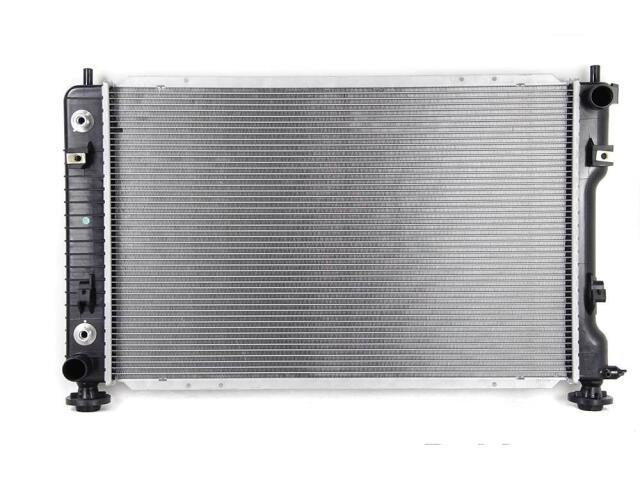

Radiator
OSC : 13103

Core Height (IN): 26
Core Material: Aluminum
Core Row Quantity: 1
Core Thickness (IN): 1
Core Thickness (MM): 26
Core Width (IN): 16 9/16
Down Flow Or Cross Flow Type: Crossflow
Engine Oil Cooler Included: No
Inlet Diameter (IN): 1 5/16
Inlet Header Length (IN): 17 1/4
Inlet Header Width (IN): 2 1/2
Outlet Diameter (IN): 1 5/16
Outlet Header Length (IN): 17 1/4
Outlet Header Width (IN): 2 1/2
Tank Material: Plastic
Transmission Oil Cooler Distance between Fittings (IN): 12
Transmission Oil Cooler Included: Yes
Transmission Oil Cooler Plate Quantity: 6

适用车型

CHEVROLET (1)

PONTIAC (1)

OE号码

品牌	号码
OE	1913040*

品牌	号码
OE	RAD1310*
