MERCURY
PB1762N

第三方数据MERCURY : PB1762N

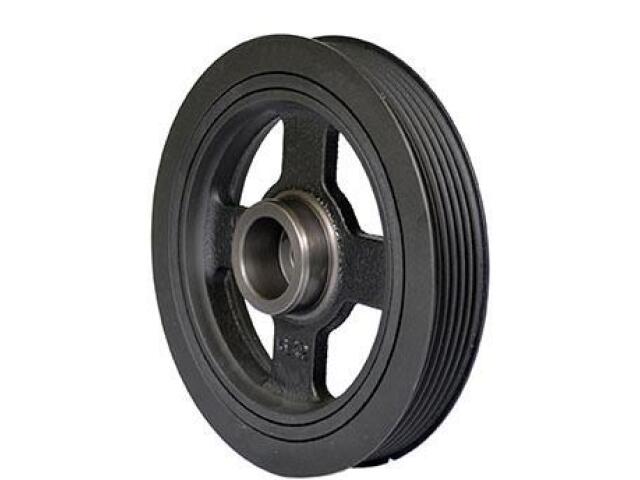

Harmonic Balancer
MERCURY : PB1762N

Counterweight Balance: Neutral, no counterweight
Crank Bore (IN): 1.103
Crank Bore (MM): 28.00
Crank Trigger/Exciter Plate: No
Hardware Included: No
Installation Instructions Included: No
Nose Outside Diameter (IN): 1.575
Nose Outside Diameter (MM): 40.00
Number of Integrated Pulleys: 1
Outer Ring Material: Cast Iron
Overall Outside Diameter (IN): 5.985
Overall Outside Diameter (MM): 152.00
Overall Width (IN): 1.182
Overall Width (MM): 30.00
Pulley 1 Number Of Grooves (MM): 6
Pulley 1 Outside Diameter (IN): 5.788
Pulley 1 Outside Diameter (MM): 147.00
Pulley 1 Type: Serpentine
Ring Width (MM): 25.50
Ring Width (in): 1.004
Timing Marks: Yes
Woodruff Key Included: No

适用车型

HYUNDAI (5)

ELANTRA (2)

ELANTRA GT (2)

KONA (1)

TUCSON (1)

VELOSTER (1)

KIA (4)
