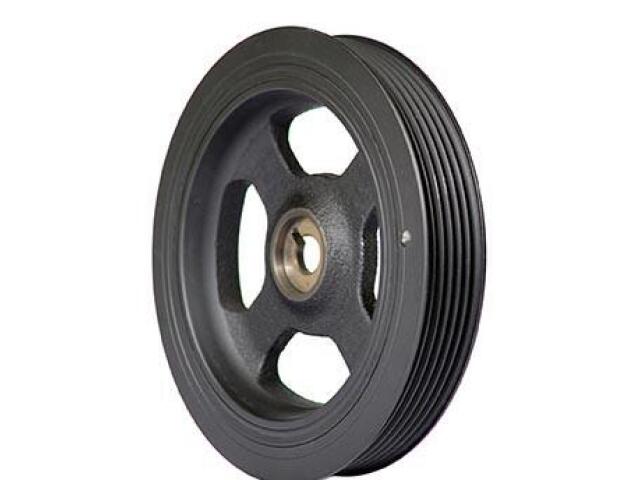

Harmonic Balancer
MERCURY : PB1761N

Counterweight Balance: Neutral, no counterweight
Crank Bore (MM): 0.00
Crank Trigger/Exciter Plate: No
Hardware Included: No
Installation Instructions Included: No
Nose Outside Diameter (MM): 0.00
Number of Integrated Pulleys: 1
Outer Ring Material: Cast Iron
Overall Outside Diameter (IN): 5.906
Overall Outside Diameter (MM): 150.00
Overall Width (IN): 0.906
Overall Width (MM): 23.00
Pulley 1 Number Of Grooves (MM): 6
Pulley 1 Outside Diameter (IN): 5.735
Pulley 1 Outside Diameter (MM): 145.65
Pulley 1 Type: Serpentine
Ring Width (MM): 25.50
Ring Width (in): 1.004
Timing Marks: Yes
Woodruff Key Included: No

适用车型

HYUNDAI (6)

ELANTRA (1)

ELANTRA GT (1)

KONA (1)

SONATA (1)

TUCSON (1)

VELOSTER (1)

KIA (5)

SELTOS (2)

SOUL (2)

FORTE (1)

FORTE5 (1)

OPTIMA (1)
