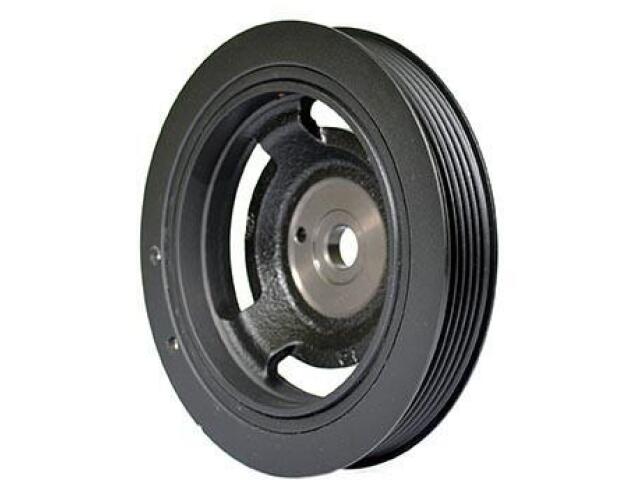

Harmonic Balancer
MERCURY : PB1756N

Counterweight Balance: Neutral, no counterweight
Crank Bore (IN): 2.048
Crank Bore (MM): 52.00
Crank Trigger/Exciter Plate: No
Hardware Included: No
Installation Instructions Included: No
Nose Outside Diameter (MM): 0.00
Number of Integrated Pulleys: 1
Outer Ring Material: Cast Iron
Overall Outside Diameter (IN): 6.142
Overall Outside Diameter (MM): 156.00
Overall Width (IN): 1.792
Overall Width (MM): 45.50
Pulley 1 Number Of Grooves (MM): 6
Pulley 1 Outside Diameter (IN): 5.898
Pulley 1 Outside Diameter (MM): 149.80
Pulley 1 Type: Serpentine
Ring Width (MM): 25.50
Ring Width (in): 1.004
Timing Marks: Yes
Woodruff Key Included: No
